DX1008JT（Arkh.3G）
Features
- 1008 size, height 0.18mm
Unprecedented extremely low-profile package using a novel structure - Composed only of quartz crystal plates and metallic films
without the use of a ceramic base - Long-term high resistance to aging, due to avoiding the use of
an organic conductive adhesive
Applications
- Mobile communications and short-range wireless modules
- Wearable devices
- Multimedia device
Standard Specification
| Type | DX1008JT (Arkh.3G) | |
|---|---|---|
| Frequency Range | 59.97MHz | 76.8MHz |
| Overtone Order | Fundamental | |
| Load Capacitance | 5pF, 8pF, 10pF, 12pF | |
| Drive Level | 10μW (100μW max.) | |
| Frequency Tolerance | ±10×10-6, ±20×10-6 (at 25℃) | |
| Series Resistance | 60Ω max. | 50Ω max. |
| Frequency Characteristics over Temperature | ±12×10-6, ±30×10-6 / −30 to +85℃ (Ref. To 25℃) | |
| Storage Temperature Range | −40 to ＋85℃ | |
| Packing Unit (1) | 3000pcs./reel (φ180) | |
(1) Moisture prevention packing is unnecessary. Moisture Sensitivity Level：LEVEL1（IPC/JEDEC J-STD-033）
Consult our sales representative for other specifications.

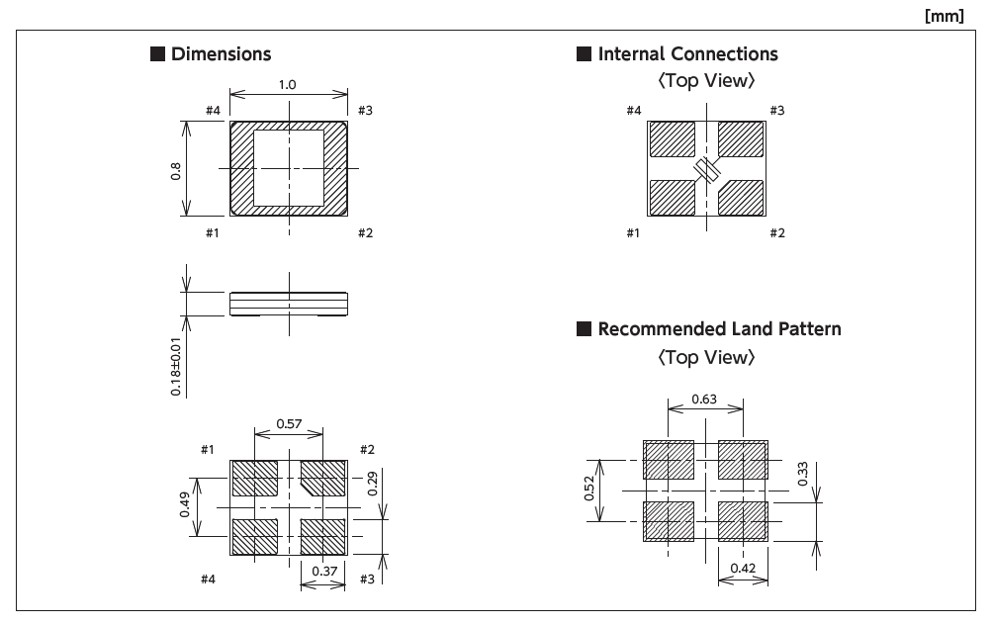

Dimentions, etc. (Click for full size)
