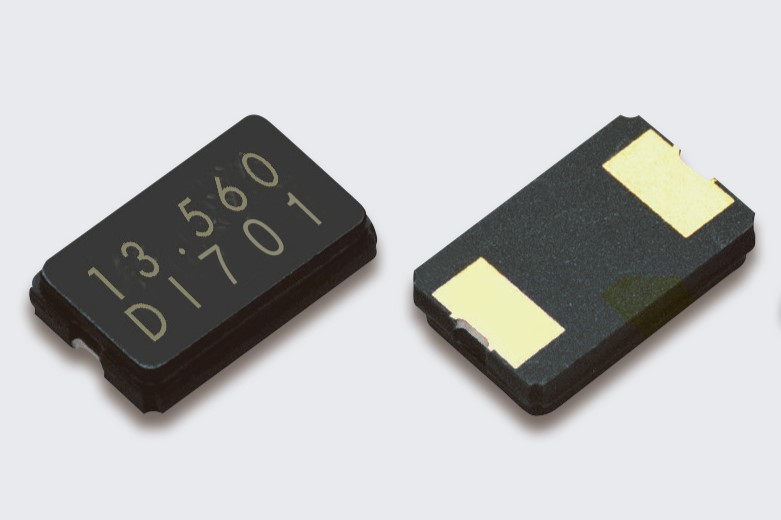

DSX530GA
Features
- 5032 size miniature SMD crystal resonator with a low profile of 1.0mm.
- Excellent heat resistance, high precision, and high reliability.
- Offers a wide range of frequencies from 7MHz up to 54MHz.
Moisture prevention packing is unnecessary. - Moisture Sensitivity Level： LEVEL1（IPC/JEDEC J-STD-033）
AEC-Q200 Compliant - Suitable for car navigation systems, digital AV equipment as well as many other applications.
Standard Specification
| Type | DSX530GA | |||
|---|---|---|---|---|
| Frequency Range | 7 to 9MHz | 9 to 12MHz | 12 to 40MHz | 40 to 54MHz |
| Overtone Order | Fundamental | |||
| Load Capacitance | 8pF, 10pF, 12pF | |||
| Drive Level | 10μW (300μW max.) | |||
| Frequency Tolerance | ±30×10-6 (at 25℃) | |||
| Series Resistance | 150Ω max. | 100Ω max. | 50Ω max. | |
| Frequency Characteristics over Temperature | ±50×10-6 / -30 to +85℃ (Ref. to 25℃) | |||
| Storage Temperature Range | -40 to +85℃ | |||
| Packing Unit | 1000pcs./reel (Φ180) | |||
Consult our sales representative for other specifications.
