DSO221SHH
Features
- Supply Voltage： 1.8V/2.5V/2.8V/3.3V
- Low phase noise：
Offset 1kHz -146 dBc/Hz(Typ.)
Offset 100kHz -164 dBc/Hz(Typ.) - Available frequency range: 2.0 to 54MHz
- Low profile： 0.8mm
- 3-state function
- CMOS Level Output
- AEC-Q200 Compliant (Option: Equivalent to AEC-Q100)
Applications
- Automotive multimedia device
Standard Specification

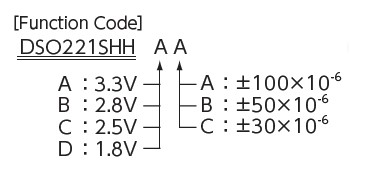

| Item | Function Code | Output Frequency Range (MHz) |
Legend | Spec. | Condition | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Supply Voltage |
Frequency tolerance |
min. | typ. | max. | Unit | |||||
| Supply Voltage | A | ＊ | 2.0≦fo≦54 | VCC | +3.0 | +3.3 | +3.6 | V | ||
| B | +2.6 | +2.8 | +3.0 | |||||||
| C | +2.25 | +2.5 | +2.75 | |||||||
| D | +1.62 | +1.8 | +2.0 | |||||||
| Frequency Tolerance (Includes frequency tolerance at room temperature.) |
＊ | A | ＊ | f_tol | -100 | - | +100 | ×10-6 | -40 to +125℃ | |
| B | -50 | - | +50 | -40 to +85℃ | ||||||
| C | -30 | - | +30 | -20 to +70℃ | ||||||
| Current Consumption | A | ＊ | 2.0≦fo≦54 | ICC | - | - | 4.2 | mA | No Load | |
| B | ＊ | |||||||||
| C | ＊ | |||||||||
| D | ＊ | - | - | 2.3 | ||||||
| Stand-by Current (#1 pin "L" Level) | ＊ | ＊ | ＊ | I_std | - | - | 10 | μA | ||
| Symmetry | ＊ | ＊ | ＊ | SYM | 40 | 50 | 60 | % | at 50% VCC | |
| 0 Level Output Voltage | ＊ | ＊ | ＊ | VOL | - | - | VCC×0.1 | V | ||
| 1 Level Output Voltage | ＊ | ＊ | ＊ | VOH | VCC×0.9 | - | - | V | ||
| Rise Time Fall Time |
A,B,C | ＊ | ＊ | tr, tf | - | - | 4.0 | ns | 10 to 90％ VCC Level | |
| D | - | - | 6.5 | |||||||
| Load Condition | ＊ | ＊ | ＊ | L_CMOS | - | - | 15 | pF | ||
| OE Pin 0 Level Input Voltage | ＊ | ＊ | ＊ | VIL | - | - | VCC×0.2 | V | ||
| OE Pin 1 Level Input Voltage | ＊ | ＊ | ＊ | VIH | VCC×0.8 | - | - | V | ||
| Output Disable Time | ＊ | ＊ | ＊ | tPLZ | - | - | 100 | ns | ||
| Output Enable Time | ＊ | ＊ | ＊ | tPZL | - | - | 2 | ms | ||
| Phase Noise | ＊ | ＊ | ＊ | - | - | -146 | - | dBc/Hz | Offset 1kHz | |
| - | -164 | - | Offset 100kHz | |||||||
| Period Jitter (1) | ＊ | ＊ | ＊ | tRMS | - | 2.4 | - | ps | σ | |
| tp-p | - | 23 | - | Peak to peak | ||||||
| Total Jitter (1) | ＊ | ＊ | ＊ | tTL | - | 34 | - | ps | tDJ+n×tRJ n=14.1(BER=1×10-12) (2) | |
| Phase Jitter | ＊ | ＊ | 40≦fo≦54 | tpj | - | - | 1 | ps | fo offset:12kHz to 20MHz | |
| 10≦fo<40 | fo offset:12kHz to 5MHz | |||||||||
| Reliability | AEC-Q100/AEC-Q200 | |||||||||
| Packing Unit（3） | 3000pcs./reel（φ180） | |||||||||
（1）Measured WAVECREST DTS-2075
（2）tDJ：Deterministic jitter tRJ：Random jitter
（3）Moisture prevention packing is unnecessary.
Moisture Sensitivity Level: LEVEL 1（IPC/JEDEC J-STD-033）
Consult our sales representative for other specifications.
Dimentions, etc. (Click for full size)
