DSB211SLD
Features
- Low voltage operation (Supply voltage +1.2V)
- High precision
- Clipped sine output
- Low phase noise
- Single package structure
Applications
- Wearable devices
- Mobile phones, GPS/GNSS, industrial wireless communication
devices, etc.
Standard Specification
| Type | DSB211SLD (TCXO) | |
|---|---|---|
| Frequency Range | 13 to 52MHz | |
| Standard Frequency | 26MHz | |
| Supply Voltage (VCC) | +1.2V/+1.8V | |
| Current Consumption | +1.7mA max. | |
| Stand-by Current (#1 pin "L" Level) | +3μA max. | |
| Output Level | 0.7Vp-p min. (Clipped sine/DC-coupled) | |
| Output Load | 10kΩ//10pF | |
| Frequency Stability | Tolerance | ±1.5×10-6 max. (After 2 reflows) |
| vs. Temperature | ±0.5×10-6-30 to +85℃ ±2.5×10-6-40 to +85℃ |
|
| vs. Supply Voltage | ±0.2×10-6 max./VCC ±5% | |
| vs. Load Variation | ±0.2×10-6 max.（10kΩ//10pF±10%） | |
| vs. Aging | ±2.0×10-6 max./year | |
| OE Pin 0 Level Input Voltage | VCC×0.2V max. | |
| OE Pin 1 Level Input Voltage | VCC×0.8V min. | |
| Start up Time | 2.0ms max. | |
| Phase Noise Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[26MHz] -116dBc/Hz -134dBc/Hz -150dBc/Hz -150dBc/Hz |
|
| Packing Unit (1) | 3000pcs./reel（φ180） | |
(1) Moisture prevention packing is unnecessary.
Moisture Sensitivity Level: LEVEL 1(IPC/JEDEC J-STD-033)
Consult our sales representative for other specifications.

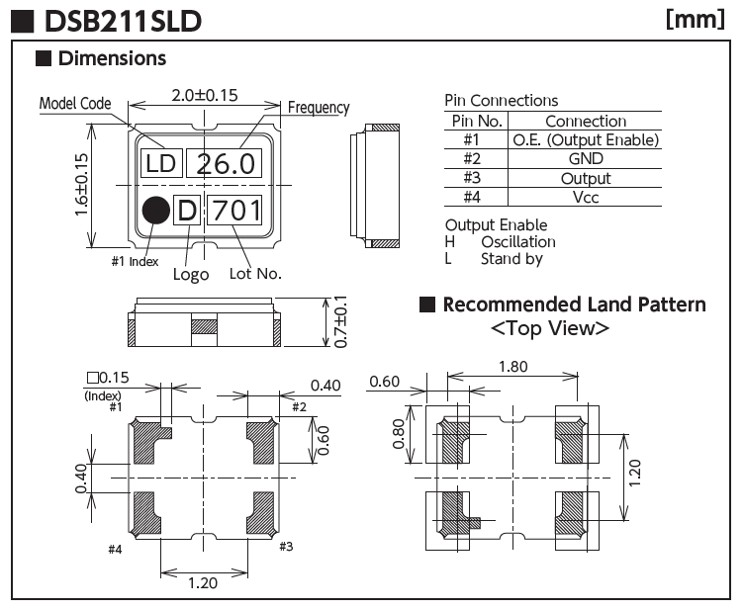

Dimentions, etc. (Click for full size)
