DSB211SJA

Features

  • Capable of operating over a wide temperature range, from -40 to +105℃
  • Supply voltage from +1.7 up to +3.6V
  • CMOS Level Output
  • Low phase noise
  • Single package structure
  • AEC-Q100/AEC-Q200 Compliant

Applications

  • WiLAN, WiMAX, Smart Grid, visual applications and industrial radio communications

Standard Specification

Type DSB211SJA (TCXO)
Frequency Range 13 to 52MHz
Standard Frequency 19.2MHz/ 25MHz/ 26MHz/ 32MHz/ 38.4MHz/ 40MHz/ 48MHz/ 52MHz
Supply Voltage(VCC +1.8V/ +2.5V/ +2.8V/ +3.3V
Current Consumption 5.0mA max. [No Load]
Stand-by Current
(#1 pin "L" Level)
+10μA max.
Frequency Stability Tolerance ±1.5×10-6 max.(After 2 reflows)
vs. Temperature ±2.5×10-6 max./ -30 to +85℃
±5.0×10-6 max./ -40 to +105℃
±20×10-6 max./ -40 to +125℃(Option)
vs. Aging ±1.0×10-6 max. /year
Symmetry 45 to 55%(50% VCC Level)
0 Level Output Voltage VCC×0.1V max.
1 Level Output Voltage VCC×0.9V min.
Output Load 15pF
Rise and Fall Time 5ns max.(10% to 90% VCC Level)
OE Pin 0 Level Input Voltage VCC×0.2V max.
OE Pin 1 Level Input Voltage VCC×0.8V min.
Start Up Time 3.0ms max.
Output Enable Time 3.0ms max.
Output Disable Time 150ns max.
Phase Noise
 Offset 1kHz
Offset 100kHz
[f≦26MHz]
-145dBc/Hz
-158dBc/Hz
[26MHz<f≦52MHz]
-141dBc/Hz
-157dBc/Hz
Packing Unit (1) 3000pcs./reel (φ180)

(1) Moisture prevention packing is unnecessary.
Moisture Sensitivity Level: LEVEL 1(IPC/JEDEC J-STD-033)

Consult our sales representative for other specifications.

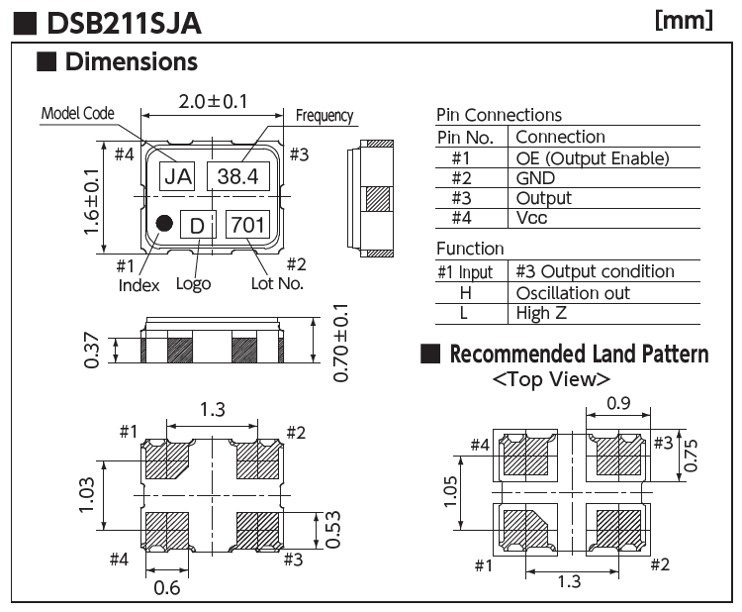

Dimentions, etc. (Click for full size)
