DS3225AA (Arkh.2G)

Pb-Free RoHS Compliant
Product Catalog Download

Features

  • Supply Voltage: 1.8V/2.5V/3.3V
  • Available frequency range: 2 to 160MHz
  • Low profile: 1.1mm
  • CMOS output
  • Supports a wide operating temperature range from -40 to +125℃.
  • AEC-Q200 compliant (option: equivalent to AEC-Q100)

Applications

  • PC, amusement equipment, HDD, camera module, automotive multimedia devices

Standard Specification

Item Function Code Output Frequency Range
（MHz）		 Legend Spec. Unit Condition
Supply Voltage Frequency tolerance min. typ. max.
Supply Voltage A ＊ 2≦fo≦160 VCC +3.0 +3.3 +3.6 V
C +2.75 +2.5 +2.25
D 2≦fo≦150 +1.6 +1.8 +2.0
Frequency Tolerance
(includes frequency tolerance at room temperature)		 ＊ A ＊ f_tol -100 - +100 ×10-6 -40 to +125℃ -10 to +70℃
(Standard Operating Temperature Range)
Z -80 - +80 -40 to +110℃
A -100 - +100 -40 to +85℃
B -50 - +50
Current Consumption A ＊ 2≦fo＜60 ICC - - 6.0 mA No Load
60≦fo＜125 - - 8.0
125≦fo≦160 - - 10.5
C 2≦fo＜60 - - 5.0
60≦fo＜125 - - 7.0
125≦fo≦160 - - 9.5
D 2≦fo＜60 - - 4.0
60≦fo＜125 - - 6.5
125≦fo≦160 - - 8.5
Stand-by Current
(#1 pin "L"Level)		 ＊ ＊ ＊ I_std - - 10.0 μA
Load Condition ＊ ＊ ＊ L_CMOS - - 15 pF
Symmetry ＊ ＊ ＊ SYM 40 50 60 % at 50% VCC
0 Level Output Voltage ＊ ＊ ＊ VOL - - VCC×0.1 V
1 Level Output Voltage VOH VCC×0.9 - -
Rise and Fall Time ＊ ＊ 2≦fo＜60 tr, tf - - 7 ns 10 to 90% VCC Level
60≦fo≦160 - - 4
OE Pin 0 Level Input Voltage ＊ ＊ ＊ VIL - - VCC×0.2 V
OE Pin 1 Level Input Voltage ＊ ＊ ＊ VIH VCC×0.8 - -
Output Disable Time ＊ ＊ ＊ tPLZ - - 150 ns
Output Enable Time ＊ ＊ ＊ tPZL - - 2 ms
Phase Jitter ＊ ＊ 10≦fo＜40

 tpj - - 1 ps fo offset:12kHz to 5MHz
40≦fo＜160 fo offset:12kHz to 20MHz
Packing Unit (1) 2000pcs./reel（φ180）

(1) Moisture prevention packing is unnecessary.
Moisture Sensitivity Level: Level1 (IPC/JEDEC J-STD-033)

Consult our sales representative for other specifications.

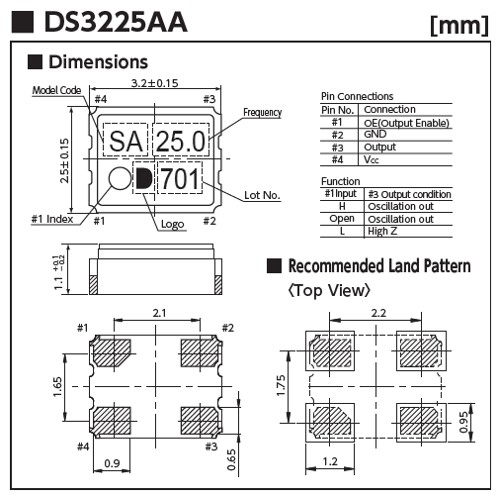

Dimentions, etc. (Click for full size)
