MHz Band Crystal Resonators

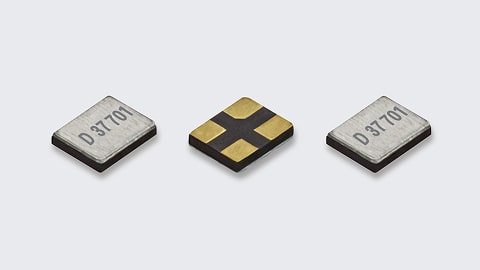

These resonators utilize thickness-shear vibration, which offers excellent temperature characteristics, and are available in a wide range of package types and sizes. Through a high-precision manufacturing process enabled by photolithography technology, they support high performance and high-frequency applications, making them suitable for various fields such as Wi-Fi, high-speed large-capacity communication (5G), and automotive communication (V2X), which requires low-latency connections. Additionally, the lineup includes automotive-use resonators, such as solder-crack-resistant resonators, which exhibit high reliability even in high-temperature environments like engine ECUs. With these products, we hold a top-tier market share in the automotive market. Furthermore, our proprietary crystal resonator ”Arkh.3G” developed using photolithography technology, features an exceptionally thin design, offering innovative applications such as integration into semiconductors.
【Examples of Use】
・Mobile and wearable devices
・Access points and routers
・PCs and server equipment
・LiDAR for autonomous driving/robots and automotive cameras
・Automotive ECUs (engine and body control)
・Smart keys and smart home devices, etc.
◀
▶
| Model | Type | Status | Specifications | Size（L×W） [mm] |
height（Max.） [mm] |
Frequency [MHz] |
Frequency Tolerance [×10-6] |
Frequency Characteristics over Temperature [×10-6] |
Operating Temperature Range [℃] |
Load Capacitance [pF] |
Series Resistance（max.） [Ω] |
Spec. No. | RoHS | REACH | Classification of Export Trade Control | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX1008JT（Arkh.3G） |  |
Production |  |
1.0×0.8 | 0.19 | 55.97/76.8 | ±10 | ±12 | -30 to +85 | 5/8/10/12 | 50/60 |  |
 |
 |
Arkh.3G extremely low-profile 1008 size MHz Band Crystal Resonators | |
| DX1008JS (Arkh.3G) | |
Sample | |
1.05×0.85 | 0.13 | 48 to 120 | ±20 | ±30 | -30 to +85 | 8,10,12 | 40/60/100 | |
|
|
Arkh.3G extremely low-profile 1008 size MHz Band Crystal Resonators | |
| DSX1210A | Production | |
1.2×1.0 | 0.19 | 32 to 80 | ±10 | ±12 | -30 to +85 | 8/10/12 | 30/40/60/100 | |
|
|
1210 size MHz Band Crystal Resonators | ||
| DSX1612S | Production | |
1.6×1.2 | 0.4 | 24 to 54/76.8 | ±10 | ±20 | -40 to +85 | 8/10/12 | 50/100 | |
|
|
1612 size MHz Band Crystal Resonators | ||
| DSX211SH |  |
Production | |
2.0×1.6 | 0.5 | 24 | ±10 | ±20 | -40 to +105 | 8 | 50 | 7AF02400A5N | |
|
|
2016 size MHz Band Crystal Resonators: Standard Type |
| DSX211S | Production | |
2.0×1.6 | 0.5 | 76.8/80/96 | ±20 | ±30 | -30 to +85 | 8/10/12 | 30 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX211SH | Production | |
2.0×1.6 | 0.5 | 16 to 60 | ±20 | ±30 | -30 to +85 | 8,10,12 | 50/100 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX211G | Production | |
2.0×1.6 | 0.8 | 20 to 64 | ±20 | ±30 | -30 to +85 | 8/10/12 | 80/120/150/200 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX221SH | Production | |
2.5×2.0 | 0.5 | 12 to 54 | ±20 | ±30 | -30 to +85 | 8/10/12 | 40/50/100 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX321G | |
Production | |
3.2×2.5 | 0.9 | 16 | ±20 | ±50 | -40 to +105 | 8 | 60 | 7AD01600A7T | |
|
|
3225 size MHz Band Crystal Resonators: Standard Type |
| DSX321G | |
Production | |
3.2×2.5 | 1.0 | 8 | ±20 | ±50 | -40 to +105 | 8 | 350 | 7AD00800A61 | |
|
|
3225 size MHz Band Crystal Resonators: Standard Type |
| DSX321SH | Production | |
3.2×2.5 | 0.75 | 12 to 50 | ±20 | ±30 | -30 to +85 | 8/10/12 | 40/50/100 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX321G | Production | |
3.2×2.5 | 0.9 | 12 to 64 | ±20 | ±30 | -30 to +85 | 8/10/12 | 50/60/80 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." | ||
| DSX321G | Production | |
3.2×2.5 | 1.0 | 7.9 to 12 | ±20 | ±30 | -30 to +85 | 8/10/12 | 100/150/300/400 | |
|
|
"Frequency Characteristics over Temperature ±50×10-6/－40 to +105℃ is available for Industrial Equipment." |
◀
▶
| Model | Type | Status | Specifications | Size（L×W） [mm] |
height（Max.） [mm] |
Frequency [MHz] |
Frequency Tolerance [×10-6] |
Frequency Characteristics over Temperature [×10-6] |
Operating Temperature Range [℃] |
Load Capacitance [pF] |
Series Resistance（max.） [Ω] |
Spec. No. | RoHS | REACH | Classification of Export Trade Control | Reliability | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSX1210A | Production | |
1.2×1.0 | 0.19 | 32 to 80 | ±10 | ±30 | -40 to +105 | 8/10/12 | 30/40/60/100 | |
|
|
AEC-Q200 | 1210 size MHz Band Crystal Resonators for Automotive | ||
| DSX1612S | Production | |
1.6×1.2 | 0.4 | 24 to 54/76.8 | ±10 | ±30 | -40 to +125 | 8/10/12 | 50/100 | |
|
|
AEC-Q200 | 1612 size MHz Band Crystal Resonators for Automotive | ||
| DSX211SH | |
Production | |
2.0×1.6 | 0.5 | 40 | ±20 | ±40 | -40 to +125 | 8 | 40 | 7AF04000A5R | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX211SH | |
Production | |
2.0×1.6 | 0.5 | 25 | ±20 | ±30 | -40 to +125 | 8 | 70 | 7AF02500A9Q | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX211SH | |
Production | |
2.0×1.6 | 0.5 | 24 | ±10 | ±20 | -40 to +105 | 8 | 50 | 7AF02400A5N | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX211SH | Production | |
2.0×1.6 | 0.5 | 16 to 60 | ±30 | ±100 | -40 to +125 | 8/10/12 | 50/100 | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive | ||
| DSX211G | Production | |
2.0×1.6 | 0.8 | 20 to 64 | ±30 | ±100 | -40 to +125 | 8/10/12 | 80/120/150/200 | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive | ||
| DSX210GE | Production | |
2.2×1.6 | 1.0 | 16 to 20 | ±30 | ±100 | -40 to +125 | 8/10/12 | 400 | |
|
|
AEC-Q200 | 2016 size MHz Band Crystal Resonators for Automotive | ||
| DSX221SH | Production | |
2.5×2.0 | 0.5 | 12 to 54 | ±30 | ±100 | -40 to +125 | 8/10/12 | 40/50/120 | |
|
|
AEC-Q200 | 2520 size MHz Band Crystal Resonators for Automotive | ||
| DSX321G | |
Production | |
3.2×2.5 | 1.0 | 8 | ±20 | ±50 | -40 to +125 | 8 | 350 | 7AD00800A62 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX321G | |
Production | |
3.2×2.5 | 0.9 | 16 | ±20 | ±50 | -40 to +125 | 8 | 60 | 7AD01600A7U | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX320GE | |
Production | |
3.2×2.5 | 1.1 | 16 | ±20 | ±150 | -40 to +150 | 8 | 70 | 7AD01600A7V | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX320GE | |
Production | |
3.2×2.5 | 1.1 | 8 | ±20 | ±150 | -40 to +150 | 8 | 350 | 7AD00800A63 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive: Standard Type |
| DSX321GK | Production | |
3.2×2.5 | 1.0 | 9.8 to 40 | ±30 | ±100 | -40 to +125 | 8/10/12 | 100/120/150/200 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive | ||
| DSX321SH | Production | |
3.2×2.5 | 0.75 | 12 to 50 | ±30 | ±100 | -40 to +125 | 8/10/12 | 40/50/80 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive | ||
| DSX321G | Production | |
3.2×2.5 | 1.0 | 7.9 to 12 | ±30 | ±100 | -40 to +125 | 8/10/12 | 150/200/400 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive | ||
| DSX321G | Production | |
3.2×2.5 | 0.9 | 12 to 64 | ±30 | ±100 | -40 to +125 | 8/10/12 | 100/120 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive | ||
| DSX320GE | Production | |
3.2×2.5 | 1.1 | 7.9 to 64 | ±30 | ±100 | -40 to +125 | 8/10/12 | 100/120/150/200/400 | |
|
|
AEC-Q200 | 3225 size MHz Band Crystal Resonators for Automotive | ||
| DSX530GA | Production | |
5.0×3.2 | 1.2 | 7 to 8 | ±30 | ±100 | -40 to +125 | 8/10/12 | 200 | |
|
|
AEC-Q200 | 5032 size MHz Band Crystal Resonators for Automotive |
