DST1610AL

Features

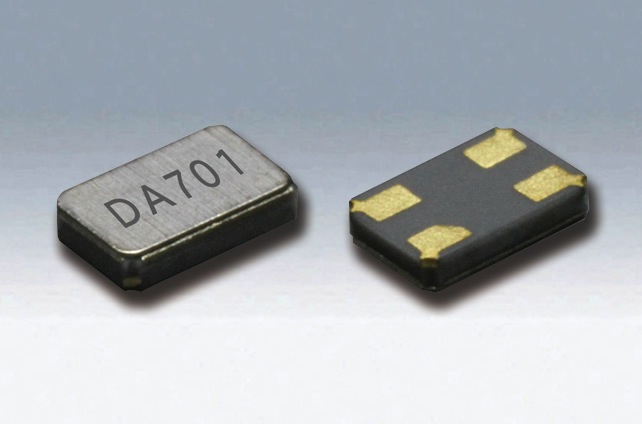

  • Ultra miniature SMD tuning fork crystal resonator 1610size height 0.35mm max.
  • A ceramic package with a metal lid providing high precision and reliability.
  • Metal lid connected to GND terminal to reduce EMI
  • Suitable for mobile communications and consumer devices.

Applications

  • Mobile communications and consumer devices, etc.
  • Smart card and Wearable devices

Standard Specification

Type DST1610AL
Frequency Range 32.768kHz
Load Capacitance 6pF, 7pF, 9pF, 12.5pF
Drive Level 0.1μW (0.5μW max.)
Frequency Tolerance ±20×10-6 (at 25℃)
Series Resistance 80kΩ max.
Turnover Temperature +25℃±5℃
Parabolic Coefficient -0.04×10-6 / ℃2 max.
Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃
Shunt Capacitance 1.2pF typ.
Packing Unit 3,000pcs/reel (Φ180)

Consult our sales representative for other specifications.

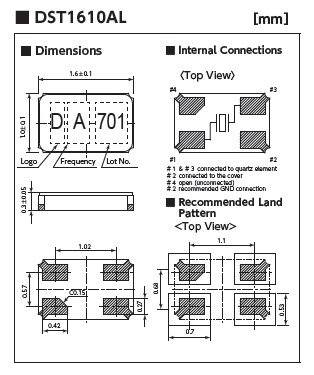

Dimentions, etc. (Click for full size)
