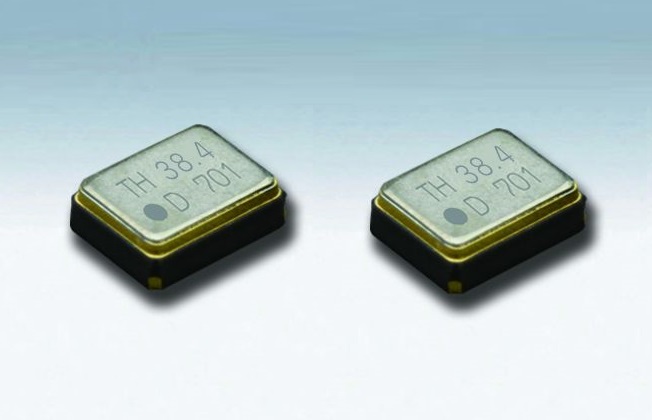

DSR1612STH

Features

  • 1612size height 0.65mm max.
  • Built-in NTC thermistor
  • Moisture prevention packing is unnecessary.
    Moisture Sensitivity Level : LEVEL 1(IPC/JEDEC J-STD-033)

Applications

  • Mobile phones
  • GPS/GNSS
  • Wearable devices

Standard Specification

Type DSR1612STH
Frequency Range 38.4MHz
Overtone Order Fundamental
Load Capacitance 6pF, 7pF, 8pF
Drive Level 10μW (100μW max.)
Frequency Tolerance ±10×10-6 (at 25℃)
Series Resistance 80Ω max.
Frequency Characteristics over Temperature ±12×10-6 / -30 to +85 ℃
Storage Temperature Range -40~+125 ℃
Thermistor Resistance 22kΩ/100kΩ (at +25℃)
Thermistor B-constant 3380K/4250K (+25℃ to +50℃)
Packing Unit (1) 3000pcs./reel (Φ180)

(1)Moisture prevention packing is unnecessary.
Moisture Sensitivity Level: LEVEL 1(IPC/JEDEC J-STD-033)

Consult our sales representative for other specifications.

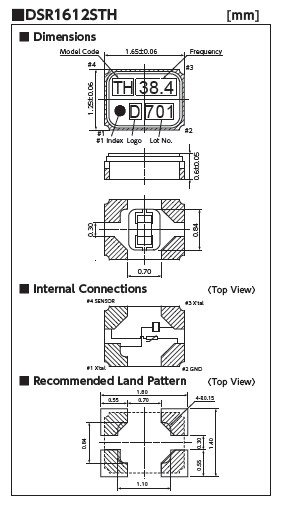

Dimentions, etc. (Click for full size)
