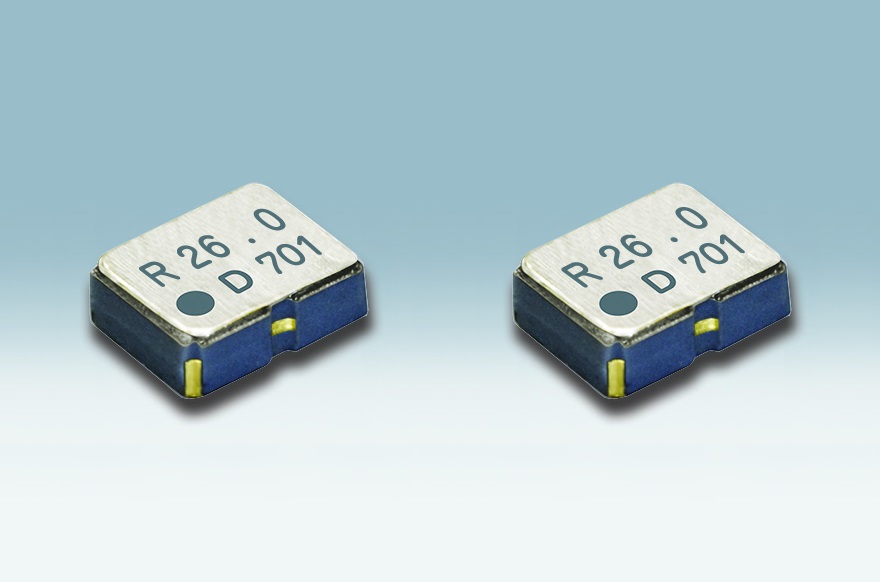

DSB1612WEB
Features
- Low voltage operation
- Capable of operating over a wide temperature range, from -40 up to +105℃
Applications
- Mobile communications, GPS/GNSS, 5G, WiFi6(IEEE802.11ax), IoT
Standard Specification
| Type | DSB1612WEB | |||
|---|---|---|---|---|
| Frequency Range | 24 to 104MHz | |||
| Standard Frequency | 52MHz/76.8MHz | |||
| Supply Voltage Range | +1.68 to +3.63V | |||
| Supply Voltage (VCC) | +1.8V/+2.5V/+2.8V/+3.3V | |||
| Current Consumption | +3.0mA max. (52MHz) +4.0mA max. (76.8MHz) |
|||
| Stand-by Current（＃1 pin "L" Level） | +6.0μA max. | |||
| Output Level | 0.8Vp-p min. (Clipped Sinewave/DC-coupled） | |||
| Output Load | 10kΩ//10pF | |||
| Frequency Stability | Tolerance | ±1.5×10-6 max. (After 2 reflows) | ||
| vs. Temperature | ±0.5×10-6 max./ -30 to +85℃ ±0.5×10-6 max./ -40 to +85℃ (Option) ±5.0×10-6 max./ -40 to +105℃ (Option) |
|||
| vs. Supply Voltage | ±0.1×10-6 max. (VCC±5%) | |||
| vs. Load | ±0.1×10-6 max. (10kΩ//10pF ±10%) | |||
| vs. Aging | ±2.0×10-6 max./year | |||
| OE Pin 0 Level Input Voltage | VCC×0.2 max. | |||
| OE Pin 1 Level Input Voltage | VCC×0.8 min. | |||
| Start up time | 2.0msec. max. | |||
| Phase Noise Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
76.8MHz (typ.) -109dBc/Hz -132dBc/Hz -149dBc/Hz -159dBc/Hz |
|||
| Packing Unit (1) | 3000pcs./reel(φ180) | |||
(1) Moisture prevention packing
Consult our sales representative for other specifications.

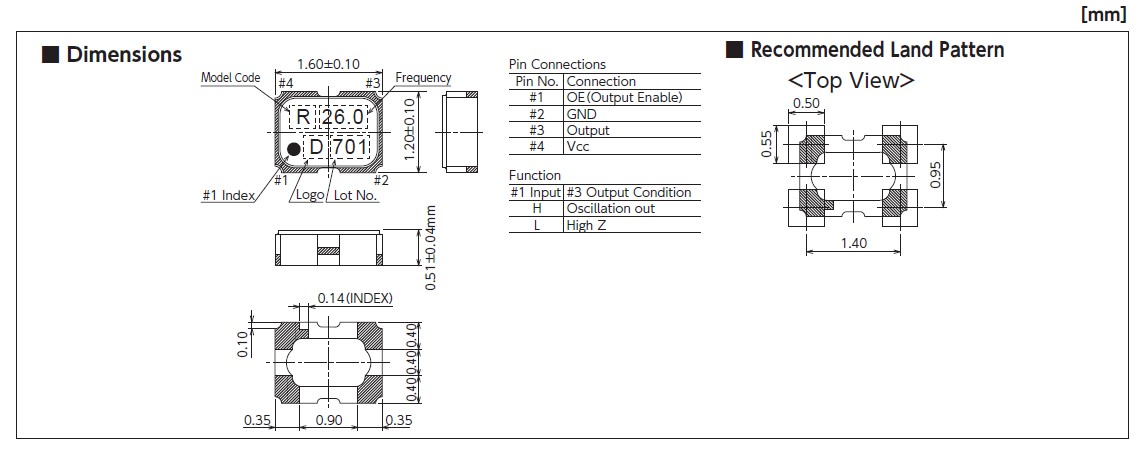

Dimentions, etc. (Click for full size)
