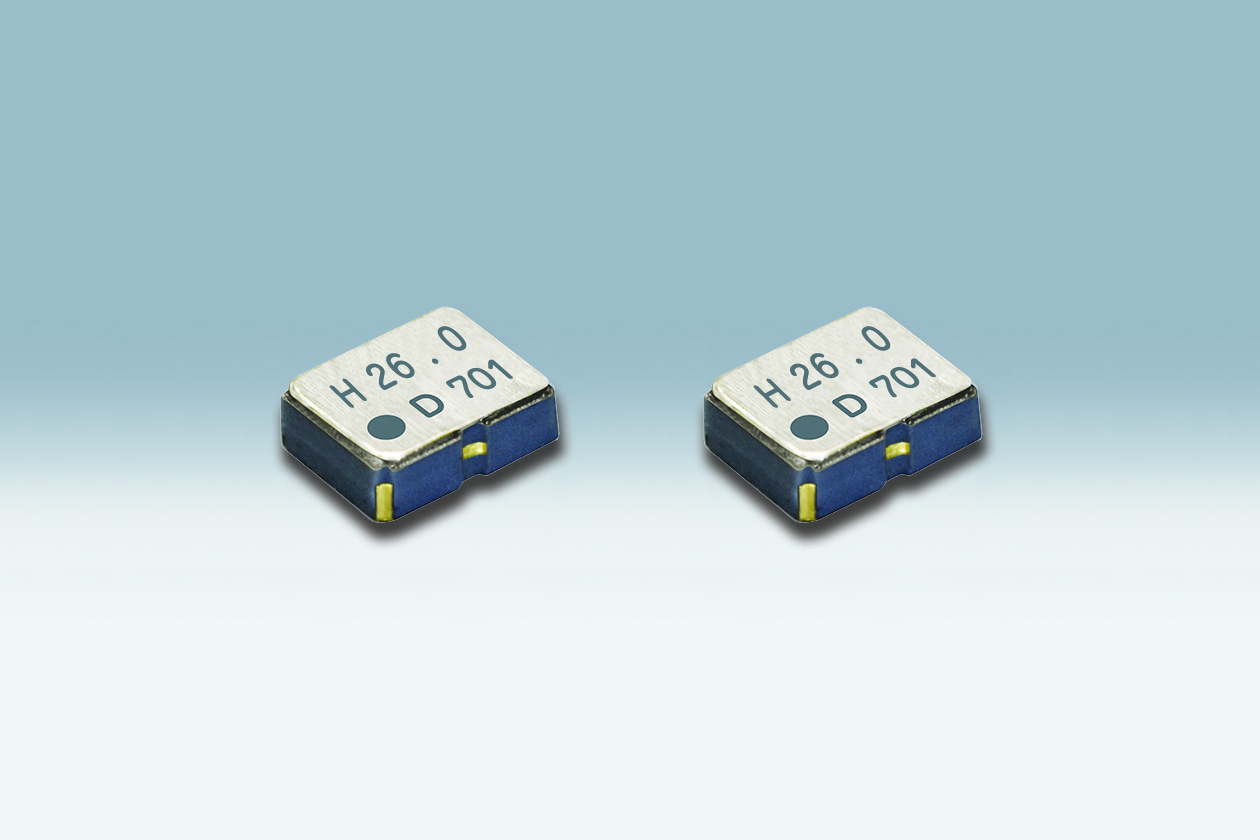

DSB1612WA
Features
- H structure
- Low voltage operation
- Low phase noise
Applications
- Mobile phones
- GPS/GNSS and Industrial radio communications
Standard Specification
| Type | DSB1612WA | |||
|---|---|---|---|---|
| Frequency Range | 26MHz/ 38.4MHz/ 52MHz | |||
| Standard Frequency | 26MHz / 38.4MHz | |||
| Supply Voltage Range | +1.68 to +3.5V | |||
| Supply Voltage (VCC) | +1.8V/ +2.6V/ +2.8V/ +3.0V/ +3.3V | |||
| Current Consumption | +1.5mA max. (f≦26MHz)/ +2.0mA max. (26＜f≦52MHz)/ +2.5mA max. (f≦60MHz) | |||
| Output Level | 0.8Vp-p min. (f≦52MHz) (Clipped sine wave / DC-coupled) | |||
| Output Load | 10kΩ//10pF | |||
| Frequency Stability | Tolerance | ±1.5×10-6 max. (After 2 reflows) | ||
| vs. Temperature | ±0.5×10-6, ±2.5×10-6 max./ -30 to +85℃ ±0.5×10-6, ±2.5×10-6 max./ -40 to +85℃ (Option) |
|||
| vs. Supply Voltage | ±0.2×10-6 max. (VCC±5%) | |||
| vs. Load | ±0.2×10-6 max. (10kΩ//10pF ±10%) | |||
| vs. Aging | ±1.0×10-6 max. / year | |||
| Start up time | 2.0msec. max. | |||
| Phase Noise Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[26MHz<f≦40MHz] -110dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[40MHz<f≦52MHz] -105dBc/Hz -125dBc/Hz -145dBc/Hz -150dBc/Hz |
|
| Packing Unit (1) | 3000pcs./reel(φ180) | |||
(1) Moisture prevention packing
Consult our sales representative for other specifications.

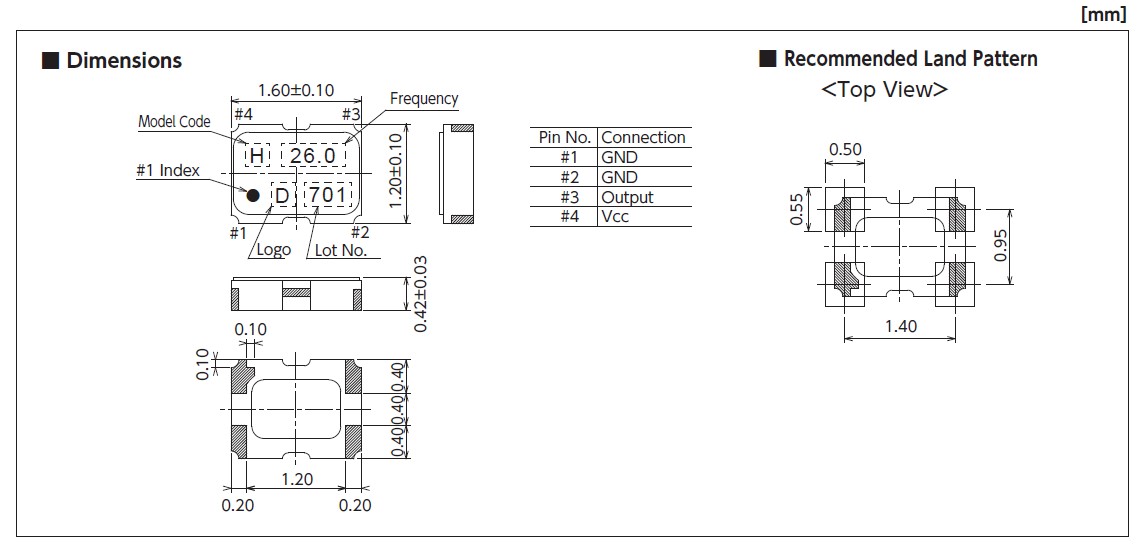

Dimentions, etc. (Click for full size)
